Disease ID tips for pre-harvest scouting

Canola plants that are ripening prematurely could be diseased. Clubroot continues to spread into new areas, so this is one possible cause – even in fields with a clubroot-resistant variety. When scouting, check those obvious plants and also a few random areas in the better producing parts of the field.

Sclerotinia stem rot taken this month in a field in northwest Saskatchewan.

Why scout now? Diseases are usually easiest to see and diagnose in the couple of weeks before swath timing. Post-harvest disease surveying can be difficult as disease symptoms have progressed and plants start to decay. So gather up your scouting toolkit (including clippers and trowel) and take advantage of this good scouting situation to assess severity, then use scouting results to plan rotations, choose varieties, and update fungicide decision-making for next year.

How to identify major diseases this time of year

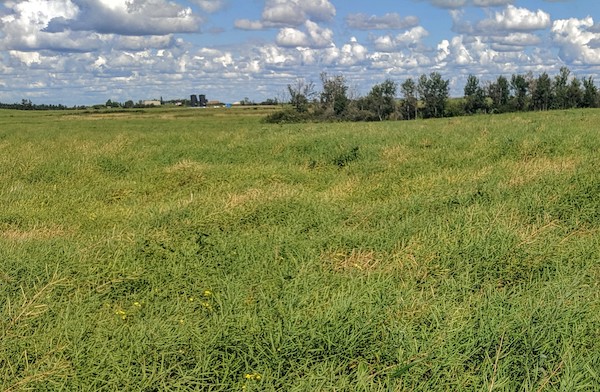

Sclerotinia stem rot. Look for areas with lodged or prematurely ripened plants. Brown or bleached plants scattered throughout your green crop may indicate a low level infection. Sclerotinia stem rot is most damaging when stem infection is early, and severe to the point where whole plants die before seed matures. Examine the lower to middle areas of the stem looking for large bleached or tan lesions. In some cases, white fungal growth may even appear on green stems. (You may find infection very low on the stem, often where infected leaves fell against stems at ground level.) As the infected stem dries, it will appear bleached or brown – like a bone – and may start to crack open or shred. Infected stem tissue is often hollow and hard, black sclerotia bodies – similar in appearance to mouse droppings – may be found inside the infected stems. Sclerotinia can be found higher up in the canopy on side branches and pods, but yield loss for these infection sites is usually minimal compared to lower stem infections. See the table at the bottom for a good comparison of stem diseases. As a general rule, yield losses due to Sclerotinia stem rot will be approximately equivalent to 50 per cent of the disease incidence. For example, if 10 per cent of stems are infected, yield loss will be about half that — or five per cent. Moist conditions through to harvest can cause continued germination of sclerotia and emergence of apothecia. If this late-season spore release does cause lesions on decomposing leaves, these lesions will form too late to cause any additional yield loss. Read more.

Sclerotinia stem rot. Credit: Justine Cornelsen
Sclerotinia stem rot. Credit: Justine Cornelsen

Blackleg. Look for areas with lodged or prematurely ripened plants. Examine the bottom to middle areas of the stem for lesions. Black pepper-like specks (pycnidia) may appear within the lesions. When blackleg is severe enough to cause yield loss, the plant will have irregular, knotty, woody cankers at the base of the stem. This infection will eventually grow through the stem, cutting off nutrient flow. If you see plants drying up, pull up the plants and use garden clippers to slice through the top of the root, about half an inch below the base of the stem. If more than half the area of the stem is blackened, blackleg has likely reduced the yield of that plant. How to rate a crop for blackleg. If blackleg levels are higher than expected even with a fungicide, check notes to see the timing of the fungicide. To be effective, a fungicide labelled for blackleg should be applied at the 2- to 4-leaf stage of the crop with appropriate rate and water volume. If seeing blackleg infection, consider lengthening this field’s rotation and changing to a different major resistance (R) gene or source of resistance.

In the weeks before harvest, you can also find late-developing blackleg lesions higher in the canola. Look for pycnidia in upper stem lesions as a sign of blackleg. These could be caused by the less virulent L. biglobosa blackleg pathogen, which rarely has enough time in Western Canada to cause major yield loss.

Clip stems around ground level to check for blackleg. Credit: Justine Cornelsen
Blackleg disease rating: 3
Blackleg disease rating: 3
Blackleg rating scale

Clubroot. Above-ground symptoms, including wilting and pre-mature ripening, should be evident in severely-infected plants. Plants may be infected with clubroot even if above-ground symptoms are not present. It is important to pull or dig up plants to examine the roots for clubroot galls. When scouting for clubroot it is important to examine the roots of plants at the field entrance, low spots or areas with premature ripening. Light or severe infection has essentially the same risk for spreading the disease with equipment. If galls are present, mark the patch and pull plants around infected plants to identify the full area of infection. Spore production is unimaginably high from each plant, so seriously consider patch management as a way to slow this disease down. Read more. Small growths on roots might not be clubroot, but you can get these analyzed to make sure. ‘Patch management for clubroot. You can do it. Here’s how.’

Even with galls this large, the plants didn’t appear to show above ground symptoms when compared on their own. But against the rest of the field, they appeared “riper” and not as green. Photo credit: Dane Froese
This tiny clubroot gall will have no effect on plant yield this year but will release spores for future infection.

Alternaria black spot. This is not usually an economic problem in B. napus (Argentine) canola when the crop is standing, but some superficial infection may turn swaths black as the crop dries down and dies. Alternaria tends to be more damaging in juncea or rapa (Polish) canola. In these crops, small black spots will move up the plant, eventually reaching the pods. If alternaria is to show up in napus canola, it will be later in the season when weather and time have removed the protective wax covering on the plant. UV radiation, cool/warm fluctuations and hail will break down this wax barrier. Cool wet weather can also increase alternaria infection, and rain splash can spread the disease to other plants. In cases of heavy alternaria infection (which is rare), early swathing may have an overall economic benefit to later swathing if alternaria has moved to pods. When infected areas make up 50% or more of the crop, swathing early may be the best way to salvage the yield in those infected plants. The disease can keep spreading on green material, and swathing hastens dry-down of the crop. Read more.

Alternaria disease can cause pods to dry prematurely.
Alternaria disease can cause pods to dry prematurely.

Aster yellows. Common symptoms include the malformed bladder-like pods, which produce little to no yield. The disease can also result in normal looking pods that contain only a few misshapen seeds. Other symptoms include sprouting in the pod, and purplish plants and pods, although this purpling can result from many potential causes. Read more.

Aster yellows with shrub-like growth. Photo credit: Barbara Ziesman
Aster yellows. Credit: Jon Whetter
Aster yellows. Credit: Jon Whetter

Grey stem. Grey stem, caused by Pseudocercosporella capsellae, can be found in most canola fields when the crop is ripening, but it usually develops too late in the growing season to affect crop yields significantly. Silvery to purplish patches develop on the stem. These can cover whole stems and continue to spread in stubble as plants decompose. Grey stem can be confused with other diseases that cause stem lesions and stem discolouration, including blackleg, sclerotinia stem rot and verticillium. Differentiate grey stem from blackleg: At the end of the season, cut the top of the root at the base of the stem and look for dead blackened tissue in the crown – a characteristic of blackleg, not grey stem. Blackleg will produce prominent black spots. Differentiate grey stem from sclerotinia stem rot: With grey stem, the stem remains strong at the lesion. Sclerotinia stem rot, as the name suggests, has a pulpy stem which, when it dries up, will easily shred. Sclerotinia stems are also lighter coloured – although this distinction can be difficult unless you have sample of both infections to compare. Differentiate grey stem from verticillium stripe: Verticillium has a beige (not grey) sunken-in look at around swath timing, but will start to become grey around harvest time. Stems will shred, revealing the tiny and uniform microsclerotia under the infected layer of stem epidermis (skin). Grey stem, if it has any spots, will be on the surface and be low in number and random. Read more

Grey stem
Grey stem on the right. Blackeg on the left. Source: Randy Kutcher
Grey stem on the right. Blackeg on the left. Source: Randy Kutcher
Close up of infected stems. Credit: Vikram Bisht, Manitoba Agriculture
Close up of infected stems. Credit: Vikram Bisht, Manitoba Agriculture

Verticillium stripe. We include this on the list, but verticillium stripe is easier to identify right at or after harvest. Verticillium symptoms are not always visible during pre-harvest disease scouting. Symptoms may only show stem bleaching on one side of the stem that can easily be confused with sclerotinia stem rot. Cross section root clippings may show a greyish hue that can be mistaken for blackleg or grey stem. A better time to assess Verticillium stripe is post-harvest where the microsclerotia in the stem have fully developed. Once the plant is fully ripe, the stem peels to reveal tiny black microsclerotia which resemble ground pepper in appearance. These microsclerotia remain on the plant stem or fall to the soil. While this may seem similar to the blackleg symptom, these specks are under the stem wall for verticillium stripe and always on the surface for blackleg. See the table below for more tips on how to distinguish vertilicillium stripe from blackleg, sclerotinia stem rot and grey stem. Note that PSI Lab in Winnipeg has a new test for verticillium in canola. Manitoba Canola Growers can get free tests. Read more about verticillium in the Canola Encyclopedia.

Verticillium stripe in canola. Credit: MAFRD
Verticillium stripe in canola. Credit: Manitoba Agriculture
Verticillium stripe. Peeling shows the darkening underneath the epidermis and outer cortex of the stem.
Verticillium stripe. Justine Cornelsen

Foot rot and brown girdling root rot. Canola plants exhibiting brown superficial symptoms at ground level likely have fusarium foot rot, which produces tan brown lesions with concentric markings. Another possibility affecting canola roots at adult stages is brown girdling root rot (BGRR), which is more of an issue in Polish canola. Symptoms of BGRR are rusty brown lesions on the canola tap root, which may girdle and pinch off the root if severe. These diseases can be much higher in tight canola rotations. Read more.

Brown girdling root rot at its most severe will completely pinch off roots. The plant lodges and dies.
Brown girdling root rot at its most severe will completely pinch off roots. The plant lodges and dies.

Fusarium wilt. This can cause bleached stems with a slight pinkish tinge typical of fusarium fungus. Discolouration can occur up only one side of a stem, a typical sign of fusarium wilt. This disease has been virtually eliminated through genetic resistance.

Quick comparison of blackleg, clubroot and sclerotinia stem rot

Canola stem diseases – A comparison

When in the fields scouting for disease also…

Check pods for exit holes from cabbage seedpod weevil larvae. If less than 25 per cent of pods have exit holes, the spray could be considered a success. If less than 25 per cent have exit holes and the crop was not sprayed, it was probably the correct decision. If more than 25 per cent have exit holes and the crop was not sprayed, it probably should have been.

Look for other insect damage to pods. Debarked pods (indicating bertha armyworm or grasshopper feeding), larger holes in pods (which could be from diamondback, grasshopper or bertha armyworm feeding) and brown rotted seeds (which can result from lygus penetration of the pod).

Check for missing pods. Insects are just one reason. Heat is a common reason. Ten reasons for missing pods.

Assess crop maturity. Open up some pods and assess the degree of colour change. This can help with harvest timing decisions.

Look for root maggots while digging up roots. Their tunnelling can reduce root function, with greenhouse studies showing a negative yield impact. Either way, severe root maggot may cause yield loss but limited options exist that might discourage the number of Delia species flies that produce the root maggot larvae. Large isolated plants tend to encourage more egg laying and larvae feeding than smaller more numerous stems.
