Evaluation of emission reductions and cost saving in sectional control air seeders, drills and sowing equipment across the Canadian Prairies (Phase 1)

Key Result

Sectional control is available through many different manufacturers and found as an available tool on almost all new seeding equipment. It is a technology that has been adopted by many producers to help reduce input costs and increase productivity in individual farming operations. Incorporating this technology has proven to show many benefits, unique to different farming operations.

Project Summary

Note – This research was carried out on behalf of the Alberta Pulse Growers.


Agricultural technologies have been rapidly evolving with the adaption of new, innovative ideas that lead to more productive and sustainable farming practices. These technologies have led to the use of larger equipment in Western Canada. Sectional control has also changed from manual to automatic implement shut-off options and a narrowing down to specific section sizes. Currently, the most precise automatic sectional-control technology on the market is individual opener control, which is capable of shutting off and/or varying the product (seed, fertilizer, etc.) being sown from the machine and raising individual openers out of the ground over previously seeded areas.

Figure 1. Comparing different methods of sectional control options (Runge, Griffin, Fulton, Virk, &
Brooke, 2014).

Automatic sectional control technology first appeared on the market around 2008 and has since made its way onto many Canadian farms. Across Western Canada, it is not uncommon to find misshapen field boundaries as well as in-field obstacles (tree bluffs, sloughs, rock piles, etc.). These obstacles lead to a greater opportunity for seeding overlap, as the equipment operator must maneuver around these points. To manage this overlap, manufacturers have made this technology available on most sowing equipment.

To reduce input costs and economic losses, overlap has been the main focus of sectional control. Seeding a previously seeded area can result in adverse effects. During seeding overlap the soil, where the seed and fertilizer are already in place, is disturbed when the openers are dragged through. As well, nitrogen fertilizers have been related to nitrous oxide (N2O) emissions, which could potentially leach into the soil and run off into water systems. By reducing overlap, better nitrogen management is established, making it possible to mitigate potential losses while also achieving a net benefit for the environment.


This project involved conducting a literature review of currently available original equipment manufacturer (OEM) and aftermarket (AFT) sectional control technologies for air seeders, drills, and sowing equipment available in the Canadian Prairies.

Overlap effects

Input costs

Farming inputs account for a very large portion of the total costs for an operation. Farmers spend a lot of time and consideration choosing the best products for their farms; however, these do not come free. Seed, seed treatment, fertilizer, herbicide, fungicide, and insecticide are a few main inputs that are common across most Western Canadian farms. There are many publicly available sources of up-to-date farming production costs to help producers better understand total inputs and to estimate cost savings from overlap reduction, such as Alberta Agriculture and Forestry (Alberta), The Crop Planning Guide (Saskatchewan), and Crop Production Costs (Manitoba). The cost benefits vary based on field complexity (e.g. a perfectly square field will show less of a benefit than a misshapen field with many obstacles).

There have been many claims in the industry regarding savings when using overlap technology, which has been mostly generated by producers. Though it is very difficult to measure precise savings of sectional control technology due to the many unique field situations, the common result is that when used and managed properly, sectional control can result in cost savings.

Crop effects

Double inputs can have certain negative effects on the crop. Excessive seed population as well as product application can negatively affect some sensitive crops, which typically reduces yield (Deere & Company, 2020). Too much fertilizer can lead to green seed as well as lodging. When a crop lodges, it creates difficulty during harvest, which can ultimately lead to crop being left in the field after harvest. Also, higher seeding rates can increase plant density and create a warm, humid environment that is more susceptible to disease development. Due to this, spray timing is a risk, as the producer may miss the optimal spray window because of disease development timings. By reducing overlap, one can assume greater field uniformity and ease of spray and harvest timing decisions, both of which would provide the producer with a higher-yielding crop and improved return on investment (ROI).

Environmental effects

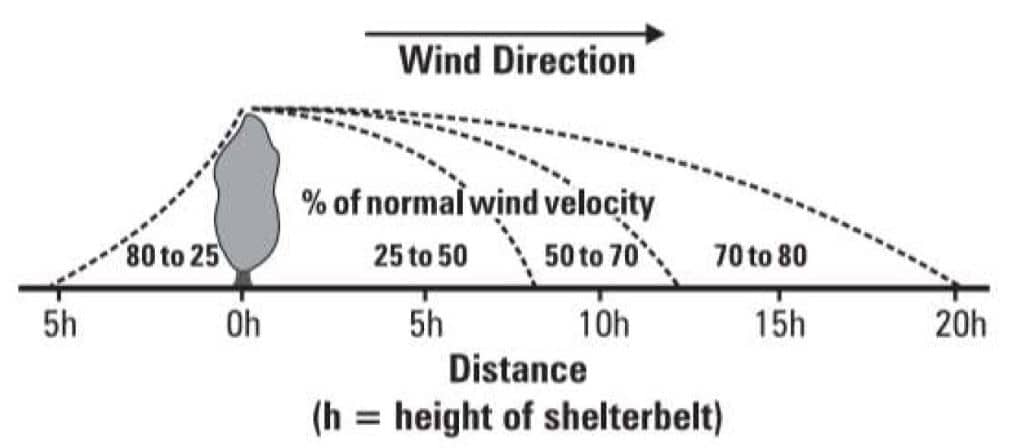

Figure 2. Reduction of wind velocity by a shelter belt (Casement & Timmermans, 2017).

Overlapping can increase some negative environmental impacts. Mobile nutrients in fertilizers (i.e., nitrogen in the NO3 form), as well as some forms of herbicides, move with water. If a product is overapplied and the plant does not take it in, the nutrient can leach into groundwater and other water systems causing detrimental effects on the water chemistry as well as eutrophication. In overapplying products, what is not used by the established plants will be left in the soil or moved through to other areas via waterways.

To improve field efficiency, many producers look to remove these obstacles as opposed to being forced to manoeuvre around them (removing rock piles, draining sloughs, cutting down tree bluffs, etc.). These areas provide habitat for pollinators, predators, and parasitoid insects, which increases overall biodiversity (bees, bats, birds, butterflies, small mammals, etc.).

These obstacles also play a role in how the field responds to weather events, depending on size. Tree bluffs or “shelter belts” are great for capturing moisture, shielding winds and hail, as well as reducing the risk of erosion with extensive root systems. Yield has been shown to increase with more non-crop land cover within or near these boundaries (Galpern, Vickruck, Devries, & Gavin, 2019).


Sectional control is available through many different manufacturers and found as an available tool on almost all new seeding equipment. It is a technology that has been adopted by many producers to help reduce input costs and increase productivity in individual farming operations. Incorporating this technology has proven to show many benefits, unique to different farming operations.

Future research

Phase 2 of this project studies some of these technologies in the field to further understand the benefits of sectional control.


  • Casement, B., & Timmermans, J. (2017, November). Field Shelterbelts for Soil Conservation. Retrieved from AGRI-FACTS: https://www1.agric.gov.ab.ca/$department/deptdocs.nsf/all/agdex2073/$file/277_20-3.pdf
  • Deere & Company. (2020). John Deere. Retrieved from 1910 Tow-Behind Air Commodity Cart: https://www.deere.com/en/seeding-equipment/1910-air-commodity-cart/?panel=harvest
  • Deere & Company. (2020). John Deere Section Control. (Deere & Company ) Retrieved December 2020, from John Deere: https://www.deere.ca/en/technologyproducts/precision-ag-technology/variable-rate-application/section-control/
  • Galpern, P., Vickruck, J., Devries, J. H., & Gavin, M. P. (2019). Landscape complexity is associated with crop yields across a large temperate grassland region. Elseview B.V.
  • Runge, M., Griffin, T., Fulton, J., Virk, S., & Brooke, A. (2014, October). Automatic Section Control Technology for Row Crop Planters. Retrieved from Extension Alabama A&M Auburn Universities.


The Prairie Agricultural Machinery Institute (PAMI) would like to acknowledge the following funding contributors as well as cooperators and partners for their donation of labour and resources: Alberta Pulse Growers, Alberta Agriculture and Forestry, Alberta Wheat Commission, Canola Council of Canada and Olds College.
